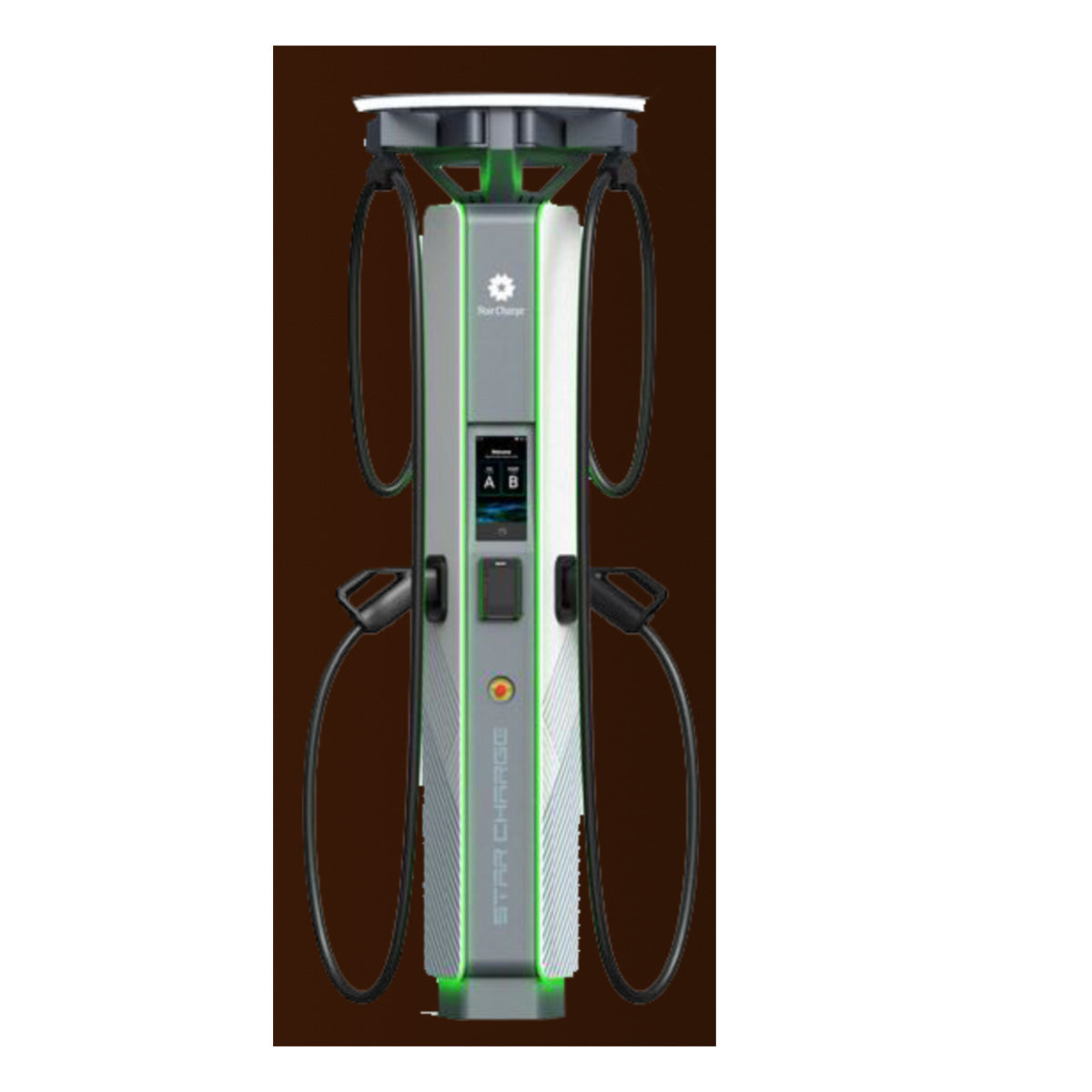

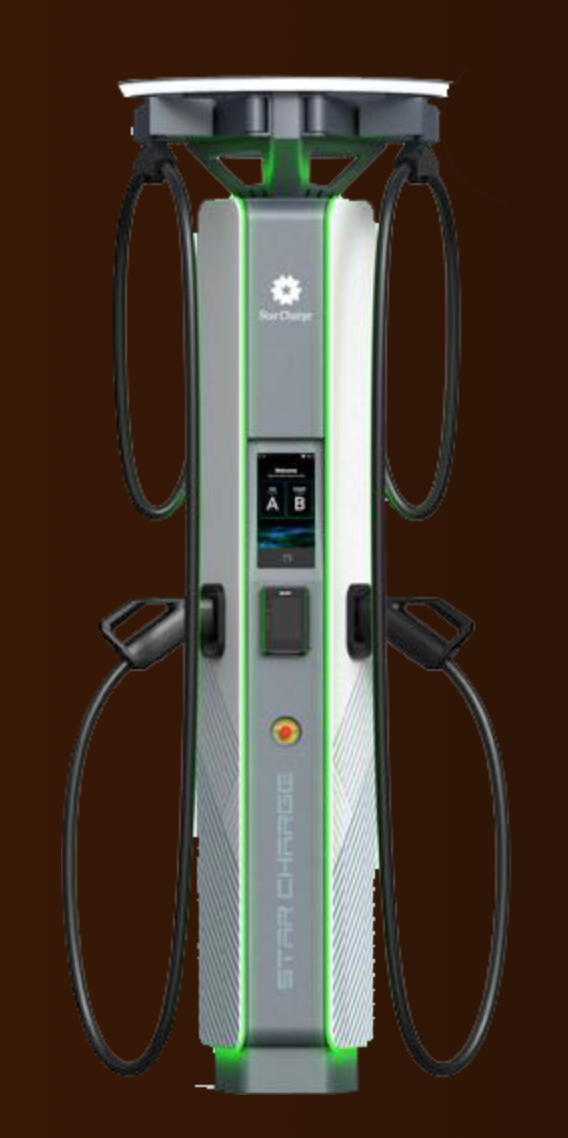

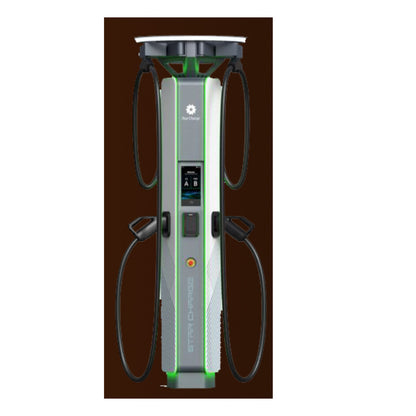

Aries DC Split Dispenser

Aries is a versatile DC fast-charging dispenser designed to work with Nova power cabinet, offering up to 720kW charging power. It features flexible connector configurations including CCS1+NACS, NACS+NACS, or CCS1+CCS1, supporting simultaneous charging with maximum current up to 600A per connector at 150-1000Vdc. The user-friendly interface includes a 7-inch touch screen with multi-language support and multiple authentication options including RFID, mobile app, and credit card payments. The dispenser supports advanced charging protocols (DIN 70121, ISO 15118) and communicates via OCPP 1.6J for seamless backend integration. Built for durability with IP55/NEMA 3R protection and IK10 rating (IK08 for screen), Aries operates reliably in temperatures from -22°F to 122°F. The compact design measures 17 5/8" x 85 1/2" x 15 1/8" and features generous 19' 8" charging cables with an integrated management system, making it ideal for commercial and public charging installations.
