ICE-600 Split System 600kW DC Fast charger
ICE-600 Split System 600kW DC Fast charger
Couldn't load pickup availability
Overview
The ICE-600 is a distributed 600kW high-power yet compact
DC Fast charger, designed for ultra high power charging of up
to 10 EVs simultaneously. With distributed dispenser and
power conversion units, this user-friendly system provides
dynamic power sharing and auto-rerouting mid-session - with
a single connector capable of providing up to 500kW (output
limited by vehicle battery capacity). With two dispenser
options and an optional authorization terminal, the ICE-600
offers the ultimate in fleet charging customizability.
The ICE-600 is ideal for
• long haul fleets requiring faster recharging
• various depot charging layouts - including those with
space constraints - where multiple EVs require
simultaneous charge-ups
• 150 to 1000Vdc output voltage range
• Dynamic power sharing in 60kW increments for up to 10
vehicles simultaneously
• Mid-session auto-reroutes available power to still-charging EVs
• Offers up to 500kW output from a single connector (Slim Line)
• Compact design for space saving power-to-footprint ratio

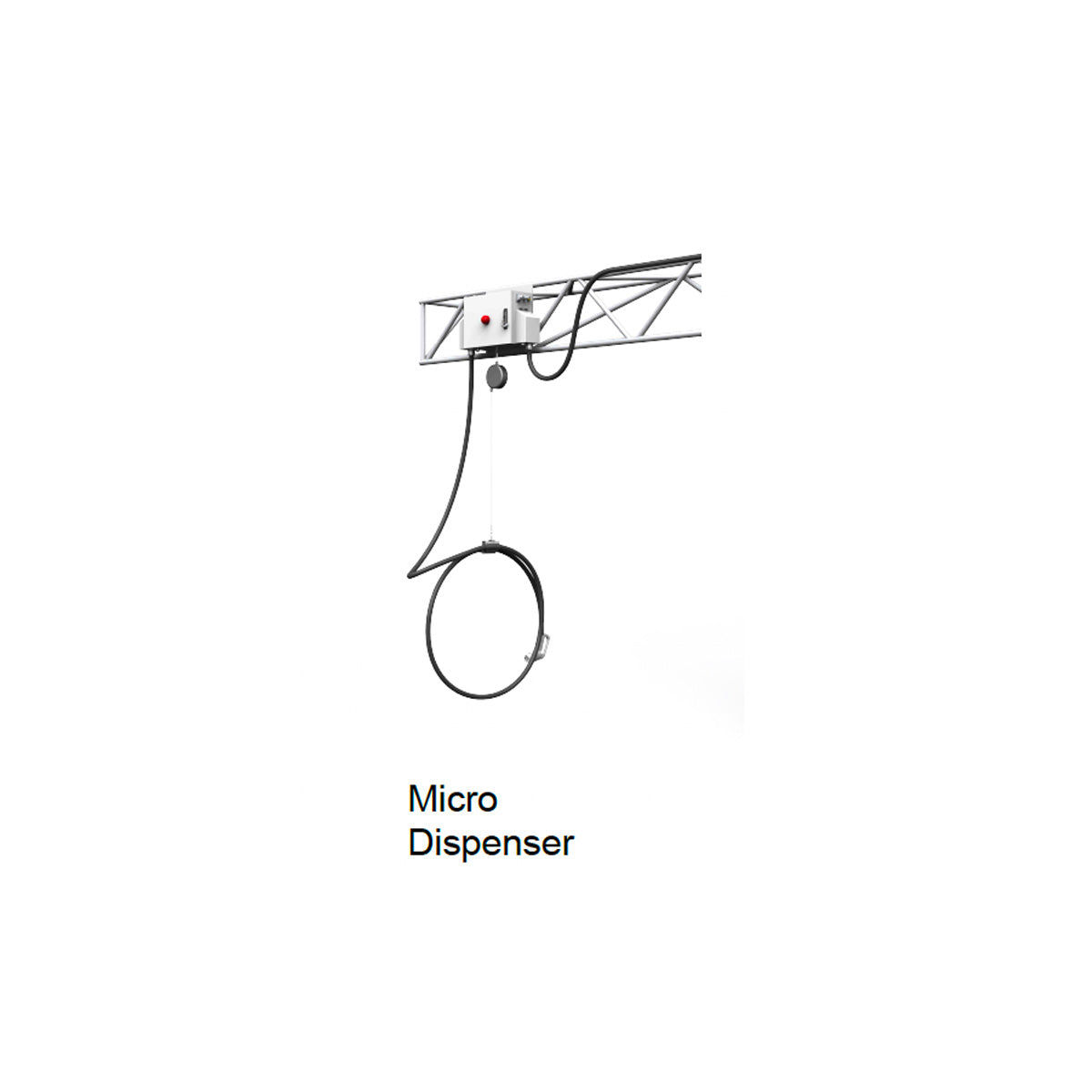

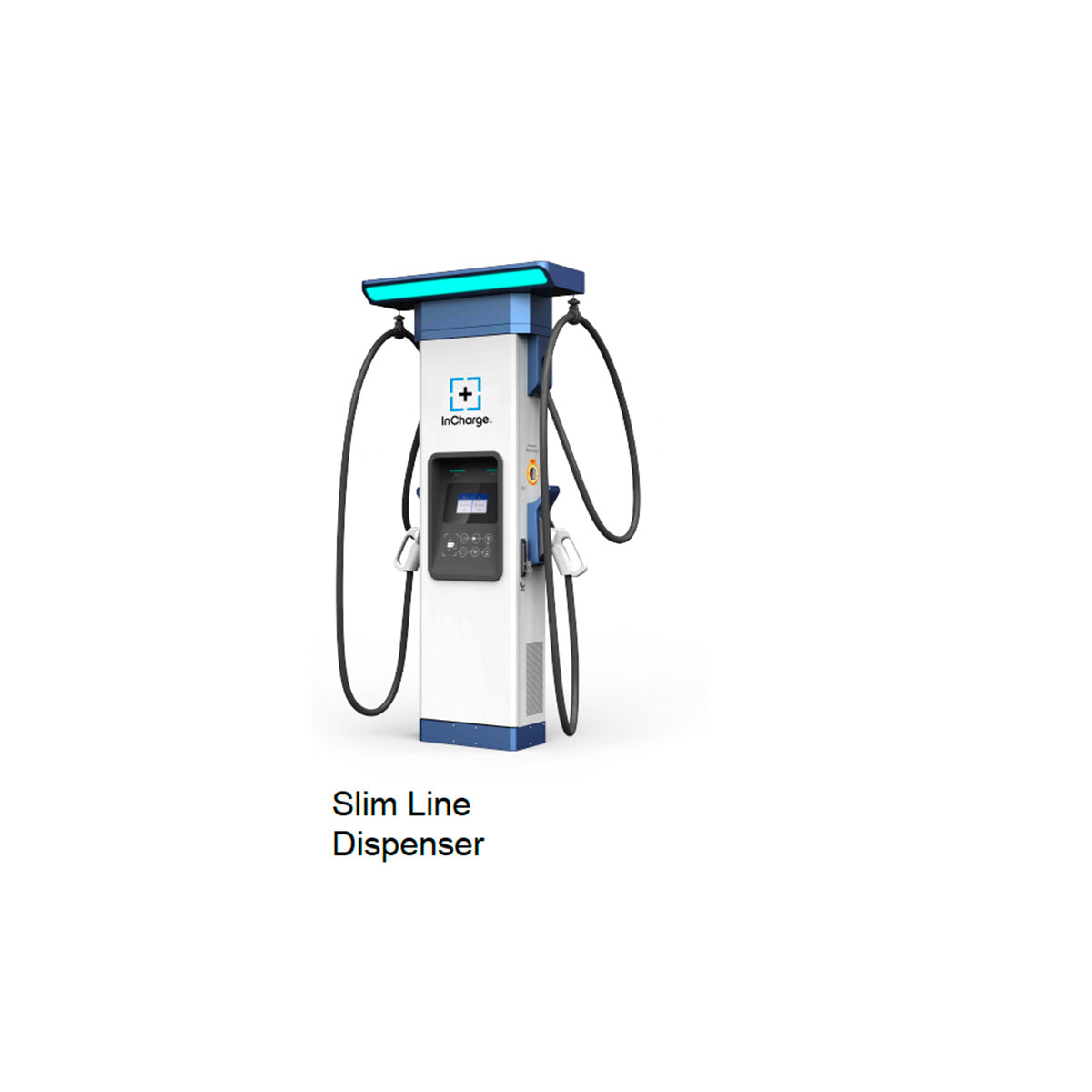

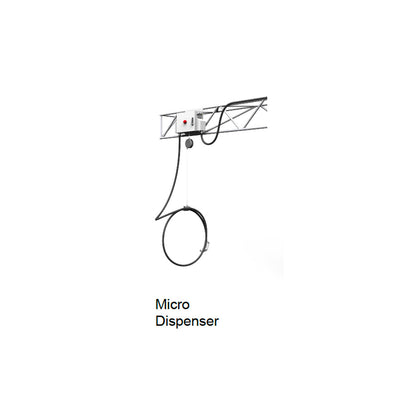

• Choose from up to 10 Micro Dispensers or up to 5 Slim Line
Dispensers

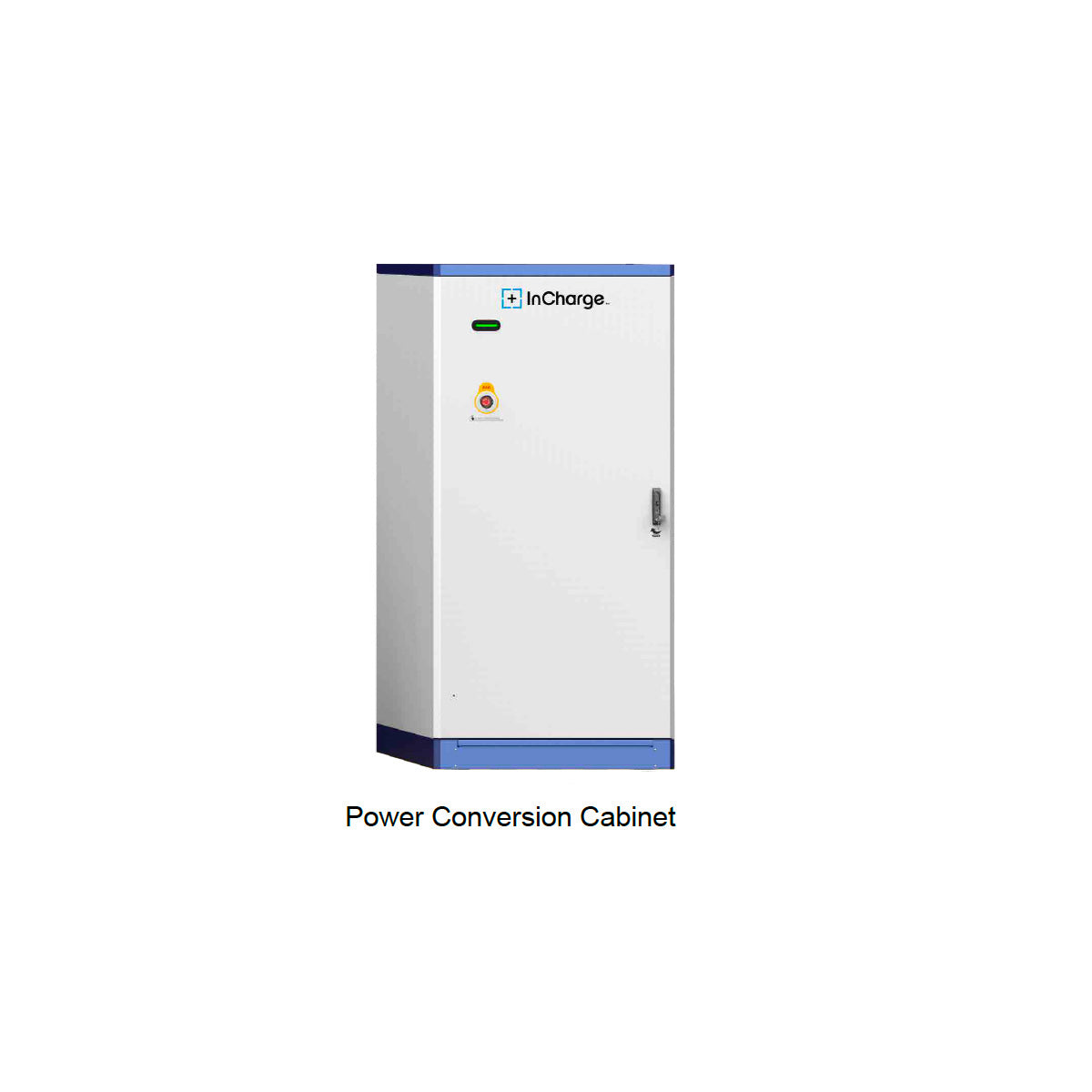

• Distributed system supports separation of dispensers and
power cabinet by up to 295 ft (90 m)
• Terminal (optional) for access control via PIN or RFID card
(cards by request) or driver credit card payment option
• OCPP 1.6 standard supports interoperability
• LTE modem and LAN for connectivity to InControl CMS
• 480V 3-phase input for high efficiency conversion
• Standard 2-year (24 month) Warranty included with every
InCharge charger (covers parts; restrictions may apply)
• Customizable warranty and maintenance options - backed by
an in-house team of service experts
