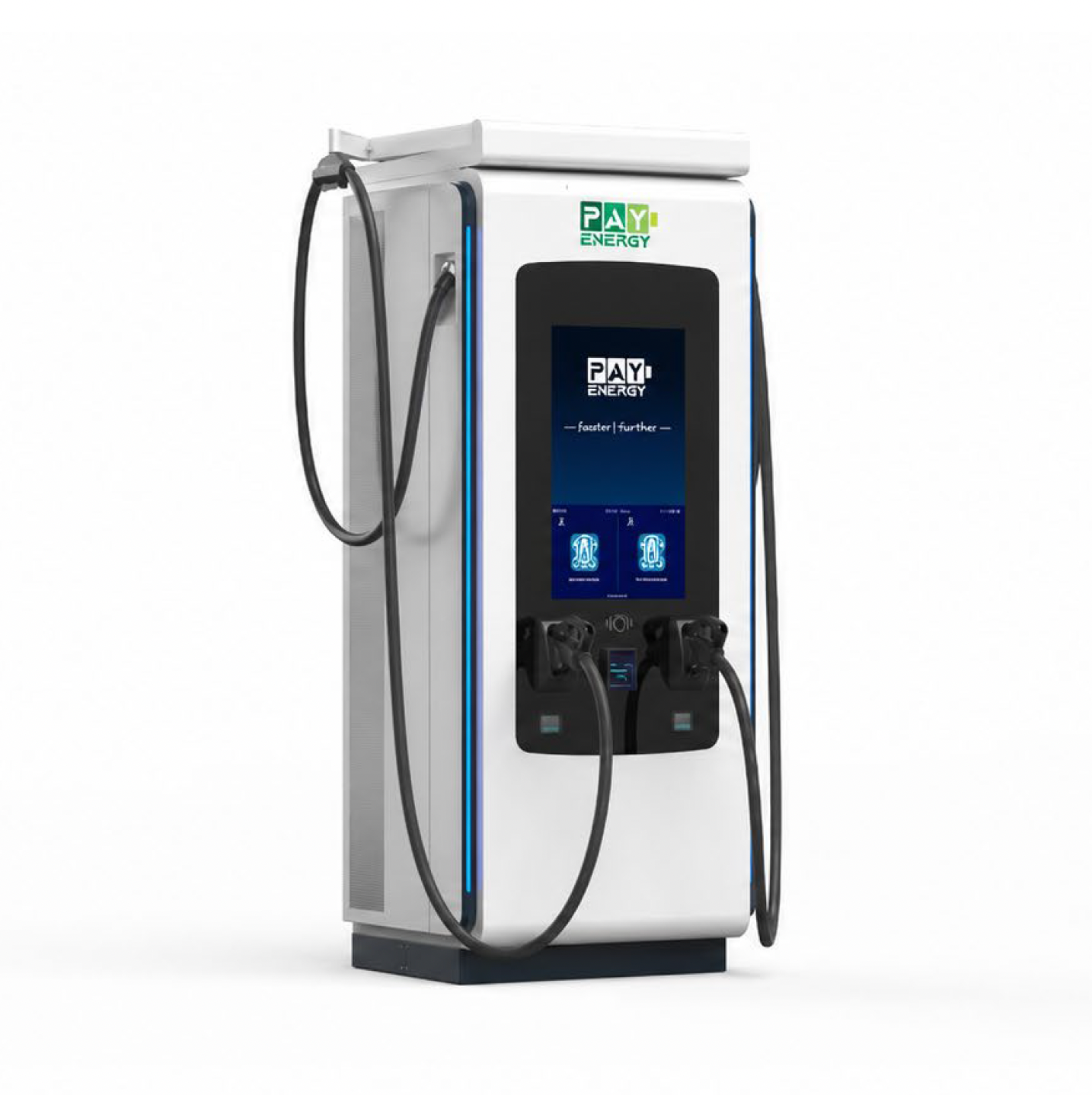

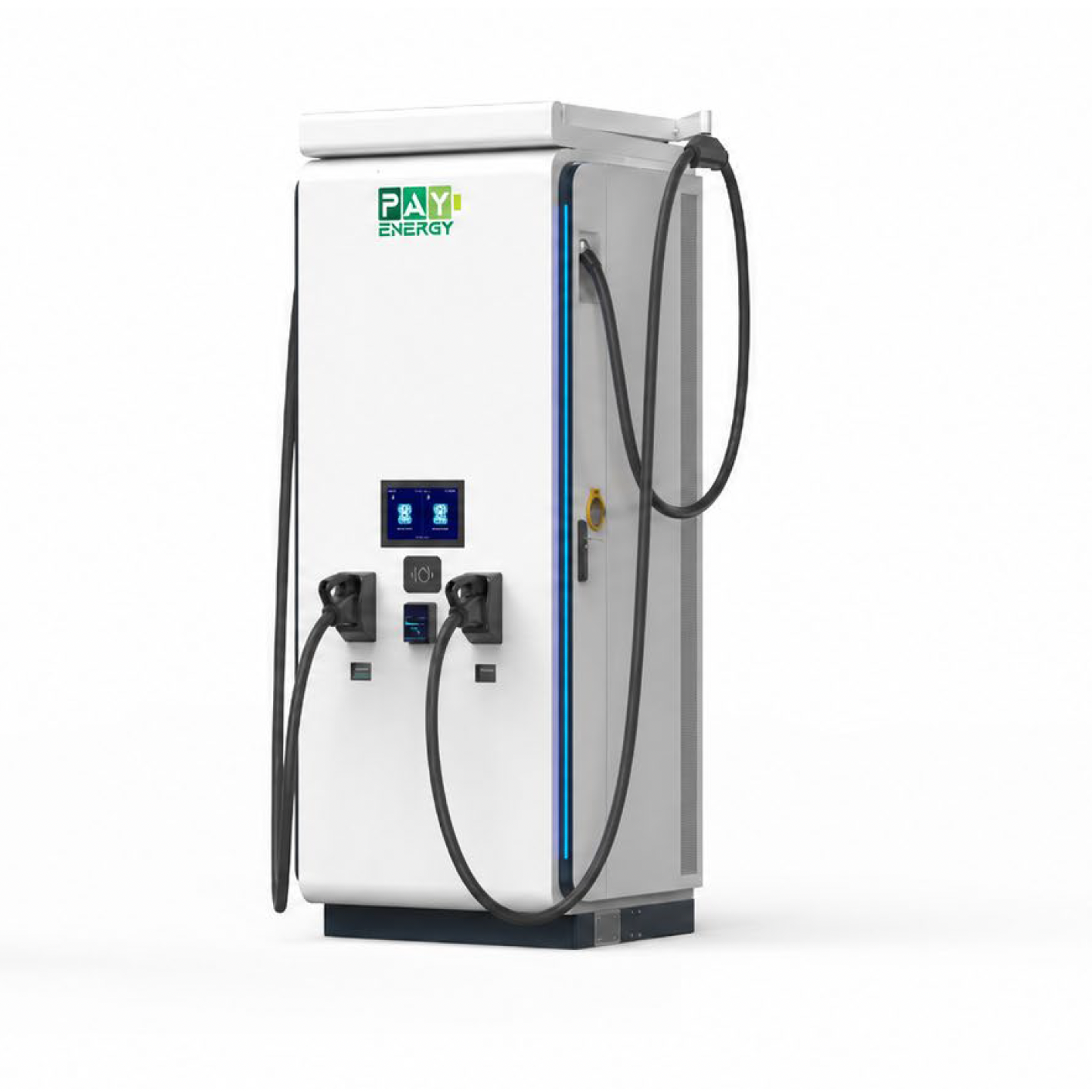

PE480K6-FD Fast DC Charger

 PE480K6-FD Fast DC Charger 480kW DC Charging Power with Two DC Charging Connectors

 Introduction : PE480K6-FD fast DC charger is specially designed with high power, high current, high protection and high reliability, and is fully compatible with CCS1/CCS2/NACS/GBT EV charging standards. Featuring all-in-one design and IPSS protection, it is suitable for diverse harsh environments. It delivers up to 480kW of charging power, with a maximum output current of 600A and a maximum voltage of l000Vdc. T he completely updated design features light bars, 32" (optional 10") LCD and a more user-friendly connector management system.

  the price shown is only for the charger other accessories to be ordered separatelY

Download Product data sheet
